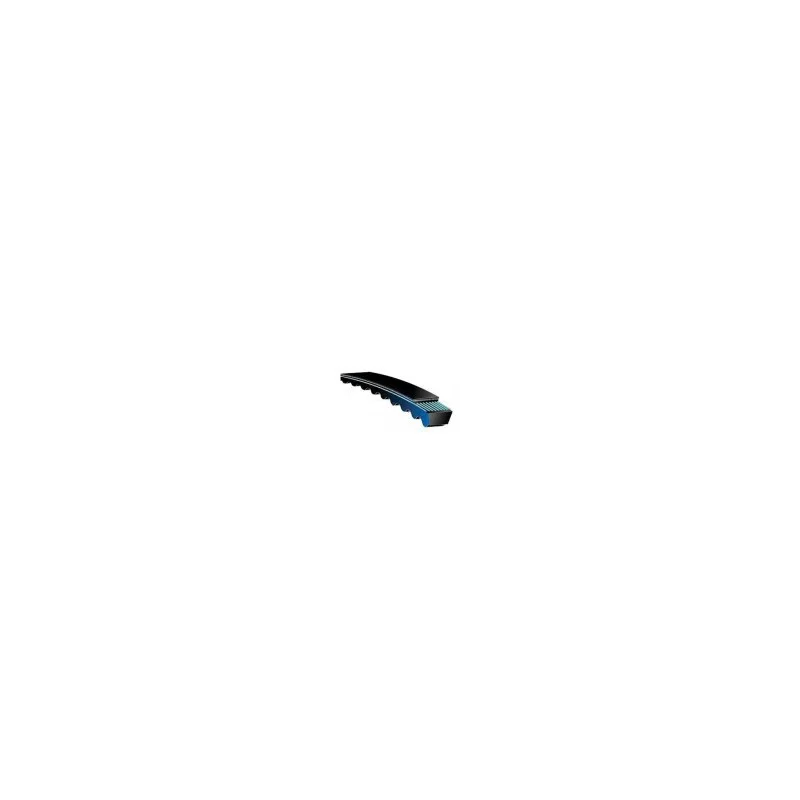

CX77 / Raw edge Cogged Belt type CX 7/8 in top width

Description: CX77 raw edge Belt
* Reference: CX77
* Length: 77 in Inside Length, 81 in Outside Length
* Top Width: 7/8 in
* Height: 17/32 in
* Weight: 1.29 lb
* Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
* Temperature Resistance: -35C to +70C
* Recommended use: Agricultural and Industrial machinery
* Recommended pulley diameter: More than 180mm (7-1/6Ôæî)
* Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
The CX77 Cogged belts have slots that run perpendicular to the belt’s length reducing the belt’s bending resistance. On of the characteristics of the CX77 Cogged belts is that if they are used with the same pulleys as equivalently rated classical non cogged v belts but they will run cooler, last longer, and have a 2% over classical V-belts. The CX77 could be used with smaller pulleys producing more horsepower and speed into pulleys at lower energy costs.
