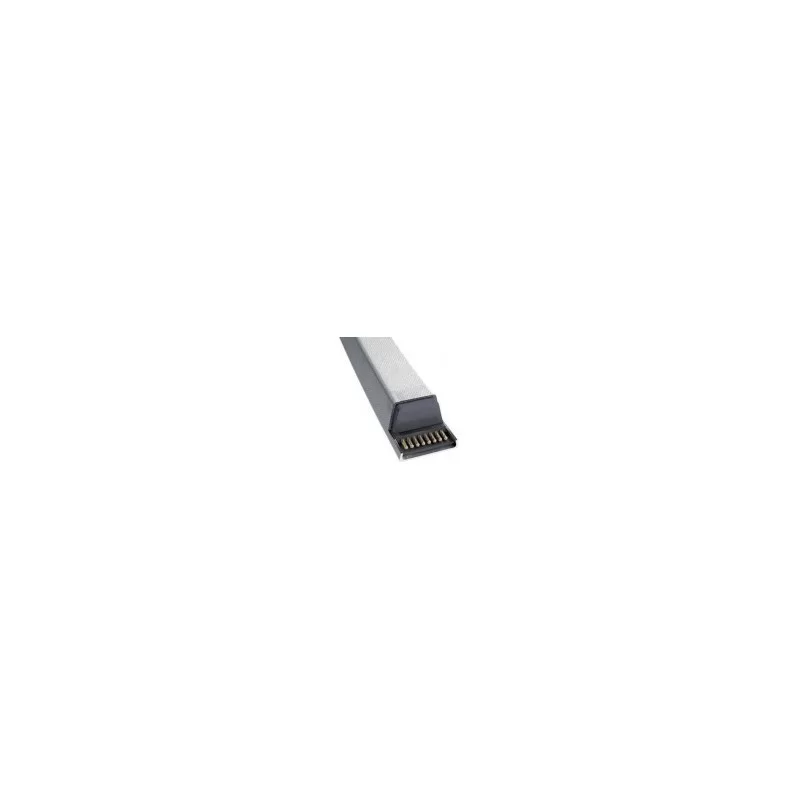

5V1120 / Wedge wrapped Belt Type 5V, 5/8 in width

Description: 5V1120 Wedge wrapped Belt
* Reference: 5V1120
* Length: 108.5 in Inside Length, 112 in Outside Length
* Top Width: 5/8 in
* Height: 35/64 in
* Weight: 1.33 lb
* Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
* Temperature Resistance: -35C to +70C
* Recommended use: Agricultural and Industrial machinery
* Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
Designed for high speed drives and short center distance
The 5V1120 is reinforced with helically wound tensile cords that are specially engineered, twisted, heat and chemically set, polyester material. The 5V1120 body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords. The 5V1120 belts exceed USA RMA published ratings levels and are designed to perform at the identical or higher level than all other major USA Manufacturer’s and OEM belts of the same type.
