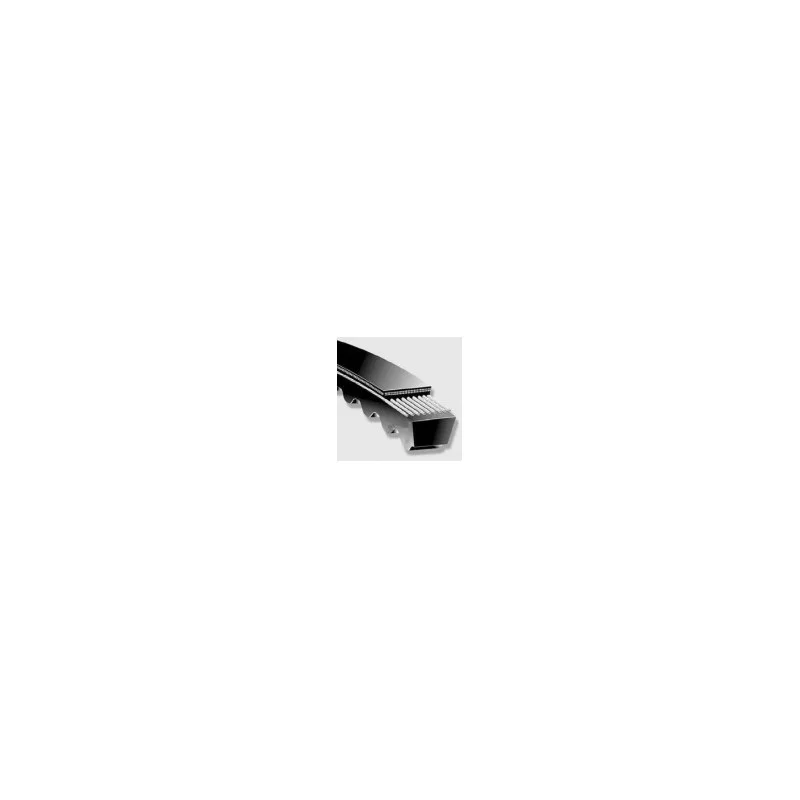

3VX315 Type 3VX Raw Edge Belt, 31.5" external length

Description: 3VX315 Raw Edge Belt
* Reference: 3VX315
* Length: 29.5 in Inside Length, 31.5 in Outside Length
* Top Width: 3/8 in
* Height: 21/64 in
* Weight: 0.12 lb
* Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
* Temperature Resistance: -35C to +70C
* Recommended pulley diameter: More than 63 mm (2-1/2”)
* Other specifications: Limited Oil resistant, Antistatic, Tolerance StableThe 3VX315 is reinforced with helically wound tensile cords that are specially engineered, twisted, heat and chemically set, polyester material. The 3VX315 body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords. The 3VX315 belts exceed USA RMA published ratings levels and are designed to perform at the identical or higher level than all other major USA Manufacturer’s and OEM belts of the same type.
