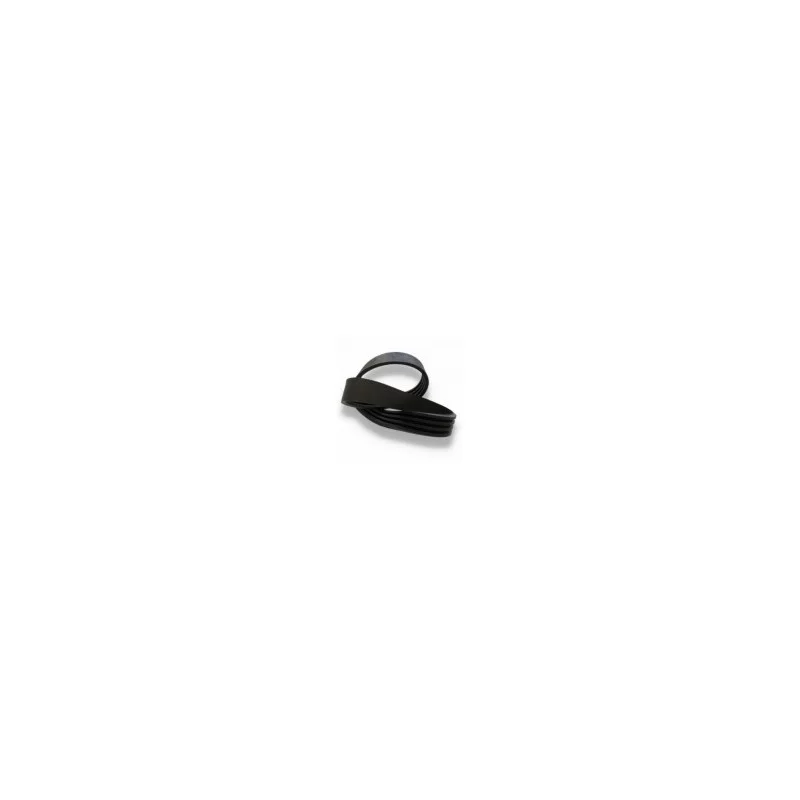

3VK1120/18 - Kevlar Banded Belt

Descriptiion: 3VK1120/18 - Kevlar Banded Belt
Reference: 3VK1120/18
* Length: 110 in Inside length, 112 in Outside Length
* Number of ribs: 18, Top width: 3/8 in each rib
* Height: 21/64 in
* Pitch: 11/16 in
* Weight: 11.29 lb.
* Equivalent to: 18/3VK1120
* Material: Dry wrapped aramid cord
* Recommended use: Higher horse power uses and are designed to increase strength and stability and are also designed to have a smoother grip. The material helps resist humidity, high temperatures, oil and cracking
* Temperature Resistance: -35"C to +70C
* - Where horsepower capacity or output is needed
* - When single or multiple drives are impractical due to limited space
* - Where belt vibration or belt whip causes unsatisfactory results where multiple conventional V-belts are installed.
* - where belt vibration or belt whip causes unsatisfactory results where multiple conventional V-belts are installed.
* Other specifications: Limited Oil resistant Antistatic Tolerance Stable.
* Banded 3VK1120/18 Kevlar wrapped V-belts give premium belt performance, just as do their single belt counterparts. The 3VK1120/18 belts are constructed of the same highly engineered, high performance components as single wrapped belts. The 3VK1120/18 outer fabric wrap is treated with oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing. The 3VK1120/18 Tie-Band backing joins the individual belts. It is made out of especially heavy duty, directionally woven fabric encapsulated in a tough rubber case to give excellent flexibility around the pulleys. In the transverse direction the 3VK1120/18 offers an extremely strong tie band across the top of the belts, and very importantly the tie band has superb adhesion to each individual belts.
