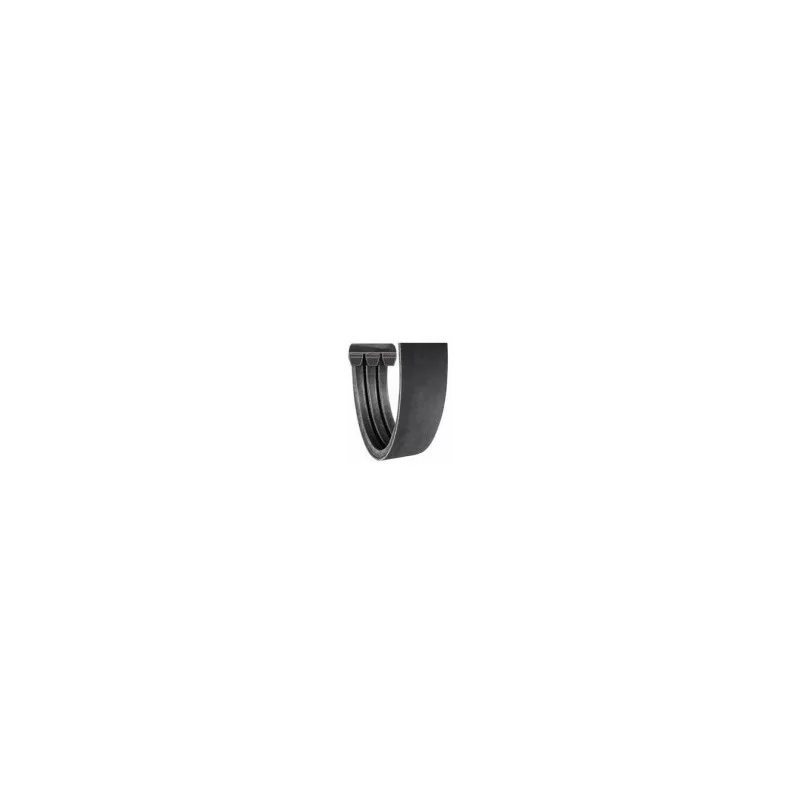

    3V560/10 / 3v banded Belt, 3/8" width belt
    • 3V560/10 / 3v banded Belt, 3/8" width belt
    • 3V560/10 / 3v banded Belt

    3V560/10 / 3v banded Belt, 3/8" width belt

    3V560/10
    Reference: 3V560/10 Wrapped Banded Belt
    Length: 54 in Inside, 56in Outside
    Number of ribs: 10
    Top Width: 3/8 in
    Height: 21/64 in
    Equivalent to: 3V560/10, 3V560/10 , 3V560-10, 3V560-10 , 10-3V560, 10R3V560, R3V560, 3V560R10, A-3V560/10 , BTQ-10/3V560, Gates 10/3V560
    $88.38
    Quantity


    <b>15</b> Buying this product you will collect 20 points with our loyalty program. Your can convert 20 points in your account into a voucher for a future purchase.

    Description
    Description: 3V560/10 Wrapped Banded Belt
    * Reference: 3V560/10
    * Length: 54 in Inside Length, 56in Outside Length
    * Number of ribs: 10
    * Top Width: 3/8 in
    * Height: 21/64 in
    * Pitch Distance: 13/32 in
    * Weight: 3.14 lb
    * Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
    * Temperature Resistance: -35C to +70C
    * Recommended use:
    - Where horsepower capacity or output is needed
    - When single or multiple drives are impractical due to limited space
    - Where belt vibration or belt whip causes unsatisfactory results where multiple conventional V-belts are installed.
    * Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
    Banded 3V560/10 wrapped V-belts give premium belt performance, just as do their single belt counterparts. The 3V560/10 belts are constructed of the same highly engineered, high performance components as single wrapped belts. The 3V560/10 outer fabric wrap is treated with oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing. The 3V560/10 Tie-Band backing joins the individual belts. It is made out of especially heavy duty, directionally woven fabric encapsulated in a tough rubber case to give excellent flexibility around the pulleys. In the transverse direction the 3V560/10 offers an extremely strong tie band across the top of the belts, and very importantly the tie band has superb adhesion to each individual belts.
    Product Details
    D&D-A&I
    3V560/10
    3V560/10

    Data sheet

    Belt Type
    Banded Belt
    Top Width
    3/8 in
    Material
    Rubber
    Height
    21/64 in
    Outside Length
    58 in
    Inside Length
    56 in
    Number of Ribs
    10
