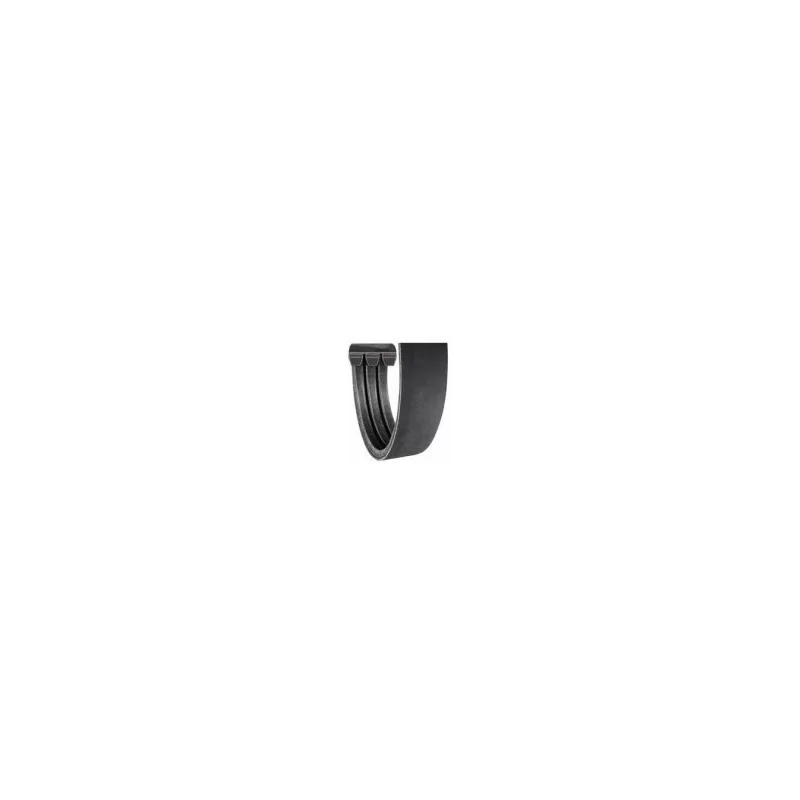

3V500/05 / 3v banded Belt, 3/8" width belt

Description: 3V500/05 Wrapped Banded Belt
* Reference: 3V500/05
* Length: 48 in Inside Length, 50 in Outside Length
* Number of ribs: 5
* Top Width: 3/8 in
* Height: 21/64 in
* Pitch Distance: 13/32 in
* Weight: 1.40 lb
* Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
* Temperature Resistance: -35C to +70C
* Recommended use:
- Where horsepower capacity or output is needed
- When single or multiple drives are impractical due to limited space
- Where belt vibration or belt whip causes unsatisfactory results where multiple conventional V-belts are installed.
* Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
Banded 3V500/05 wrapped V-belts give premium belt performance, just as do their single belt counterparts. The 3V500/05 belts are constructed of the same highly engineered, high performance components as single wrapped belts. The 3V500/05 outer fabric wrap is treated with oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing. The 3V500/05 Tie-Band backing joins the individual belts. It is made out of especially heavy duty, directionally woven fabric encapsulated in a tough rubber case to give excellent flexibility around the pulleys. In the transverse direction the 3V500/05 offers an extremely strong tie band across the top of the belts, and very importantly the tie band has superb adhesion to each individual belts.
