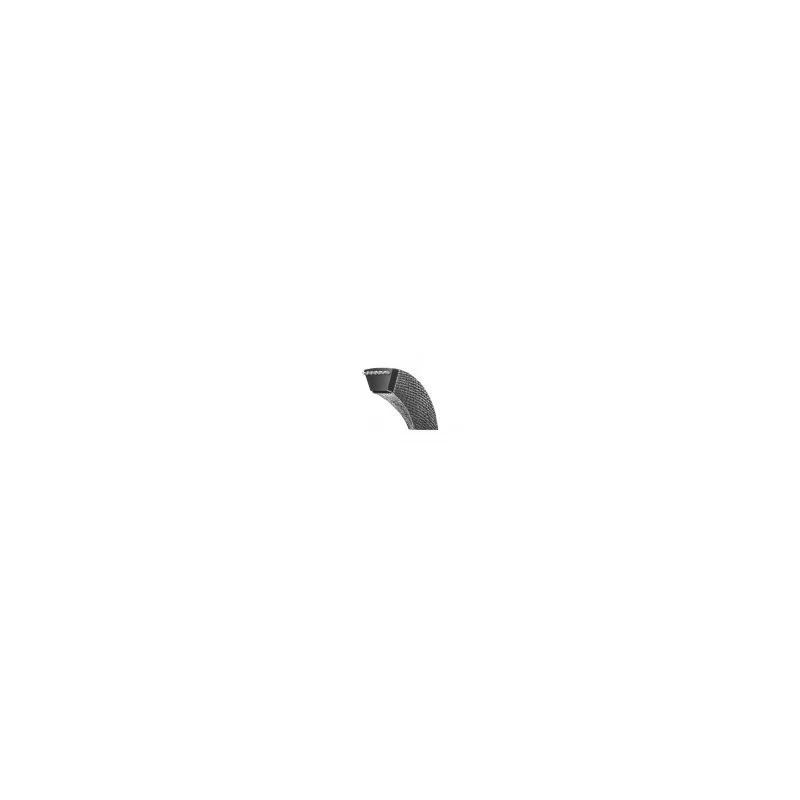

E240 V Belt Type E

Description: E240 Classical V-Belt
* Reference: E240
* Length: 240 in Inside Length, 246 in Outside Length
* Top Width: 1-1/2 in
* Height: 29/32 in
* Weight: 11.95 lb
* Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
* Temperature Resistance: -35C to +70C
* Recommended use: Agricultural and Industrial machinery
* Recommended pulley diameter: More than 500mm (19-5/8")
* Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts E240 are commonly used in industrial applications because of their relative low cost, ease of installation. The E240 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the E240 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.
